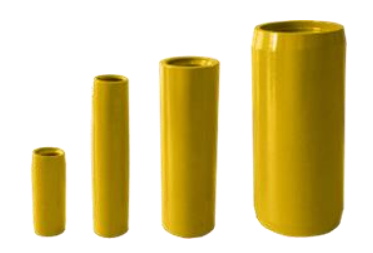

Anchor Coupler

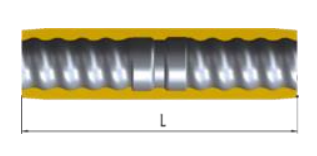

| Coupler Size | Length(mm) | Outer Diameter(mm) | Unit Weight (kg) |
|---|---|---|---|
| R25 | 150.0 | 36.0 | 0.6 |
| R32 | 190.0 | 42.0 | 0.9 |
| R38 | 220.0 | 51.0 | 1.7 |
| R51 | 200.0 | 63.0 | 2.0 |
| T76 | 220.0 | 95.0 | 4.7 |
| T30 | 105.0 | 38.0 | 0.42 |
| T40 | 140.0 | 57.0 | 1.3 |
| T52 | 160.0 | 70.0 | 2.4 |
| T103 | 290.0 | 132.0 | 12.5 |
