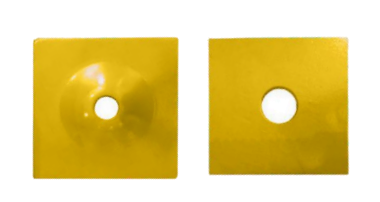

Bearing Plates

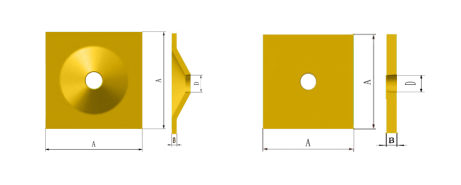

| Size | Domed Plate | Flat Plate | ||||
|---|---|---|---|---|---|---|
| A x A x B (mm) | D(mm) | Weight (kg) | A x A x B (mm) | D(mm) | Weight (kg) | |
| R25 | 200x200x12 | 30 | 1.4 | x | x | x |
| R32 | 200x200x12 | 35 | 3.2 | 200x200x25 | 35 | 3.90 |
| R38 | 200x200x12 | 43 | 3.8 | x | x | x |
| R51 | 200x200x12 | 56 | 4.3 | 200x200x25 | 56 | 8.2 |
| T76 | 200x200x12 | 80 | 4.2 | 200x200x25 | 80 | 8.10 |
| T30 | 200x200x12 | 35 | 2.50 | |||
| T40 | 200x200x12 | 45 | 3.50 | 200x200x25 | 45 | 9.45 |
| T52 | x | x | x | 250x250x25 | 65 | 8.90 |
| T103 | x | x | x | 250x250x25 | 110 | 9.90 |
