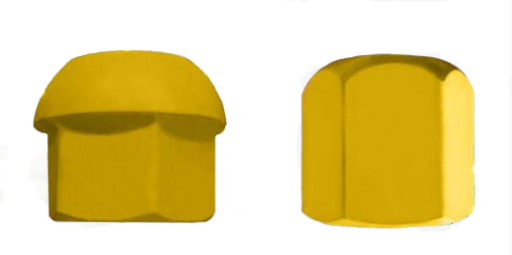

Anchor Nut

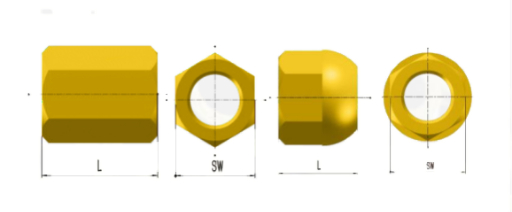

| Size | SW (mm) | L (mm) | Unit Weight (kg) |
|---|---|---|---|
| Hexagonal Nut | |||
| R25 | 41 | 41 | 0.30 |
| R32 | 46 | 65 | 0.45 |
| R38 | 50 | 60 | 0.50 |
| R51 | 75 | 70 | 1.55 |
| Spherical Nut | |||
| T76 | 100 | 90 | 3.20 |
| T30 | 46 | 35 | 0.42 |
| T40 | 65 | 50 | 0.90 |
| T52 | 80 | 70 | 2.20 |
| T73 | 95 | 70 | 2.20 |
| T103 | 125 | 80 | 3.40 |
| T127 | 140 | 140 | 9.20 |
